Basic Information

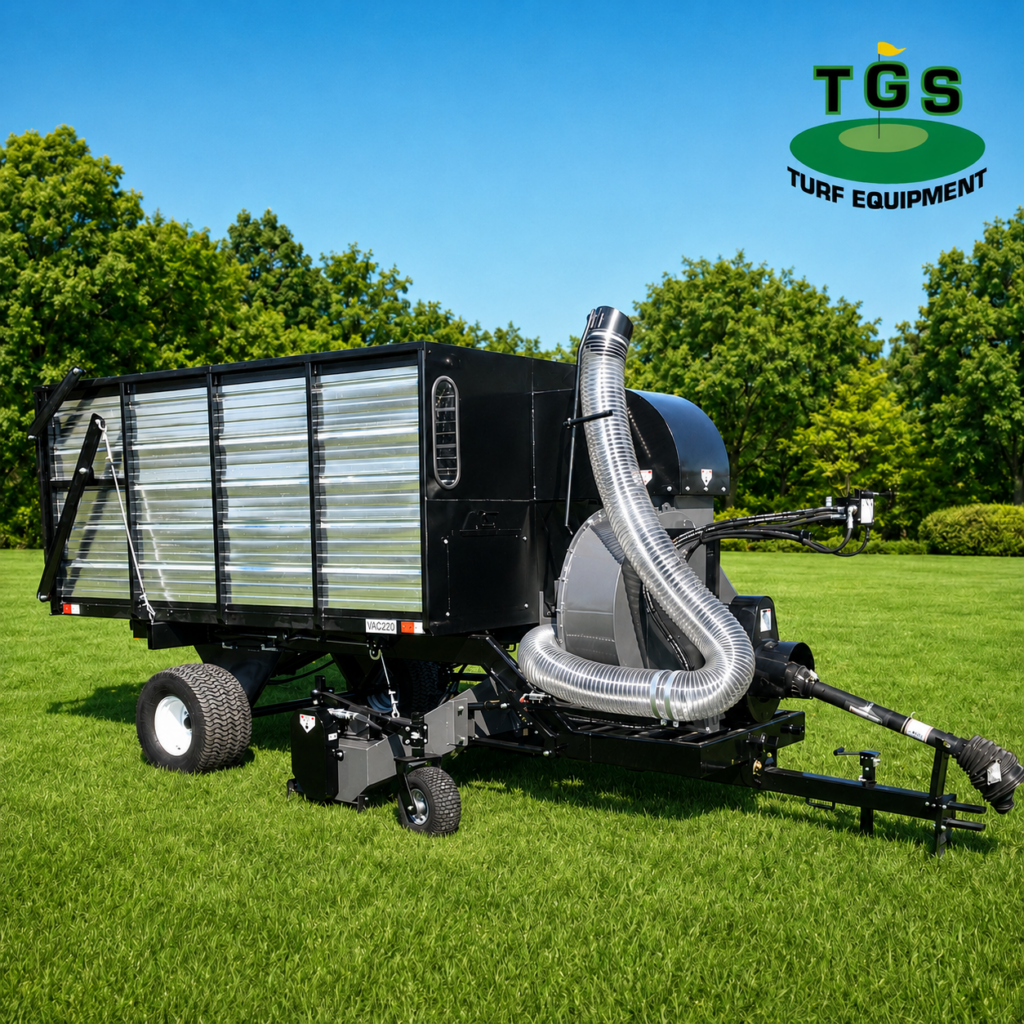

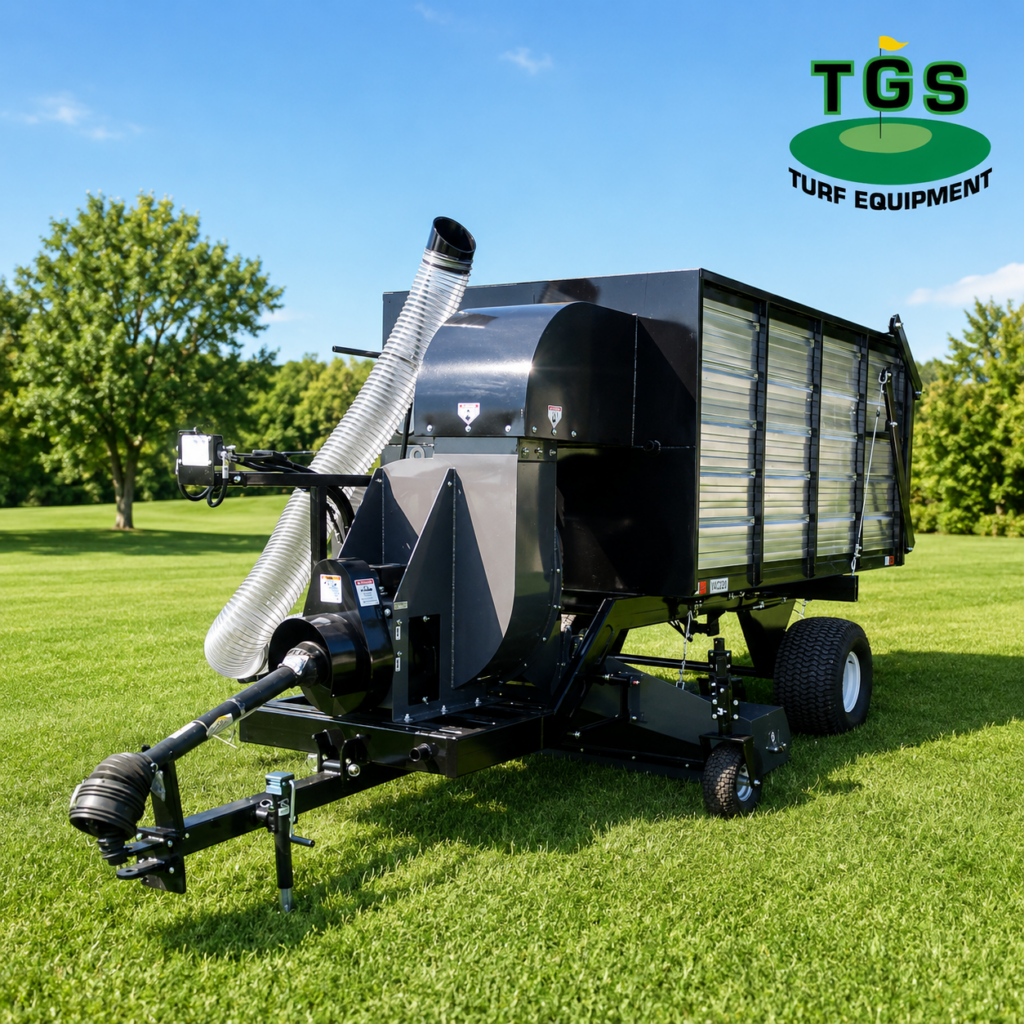

Kleen Sweep VAC220
PROUD DISTRIBUTOR
High-Capacity & Efficient Hopper
-
10 Cubic Yard Capacity: Handles large volume clean-up jobs with dimensions of $72"times54"times120"$.
-
Galvanized Steel Build: Built with corrosion-resistant galvanized steel for extended durability.
-

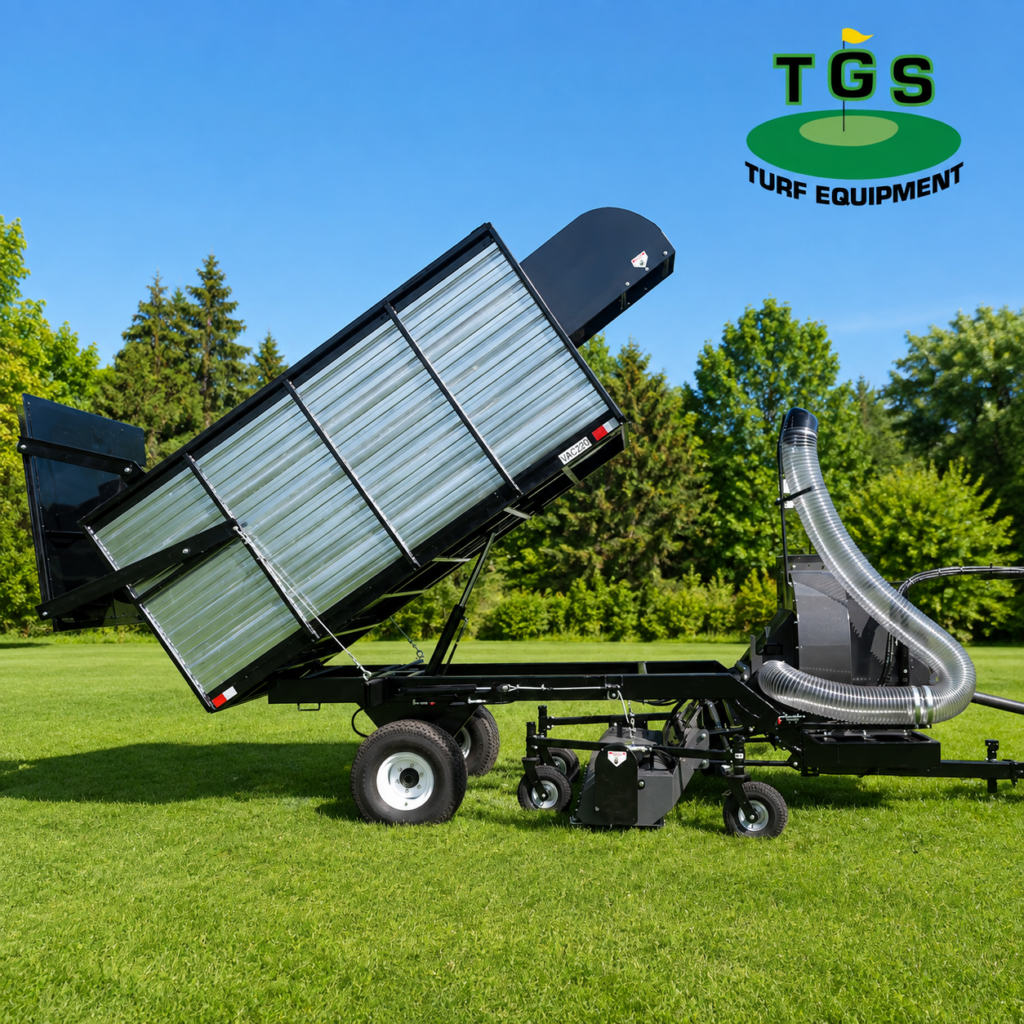

Clean & Automatic Dumping: Features a hydraulic dump system paired with an automatic opening rear door and tapered sides to ensure debris dumps cleanly without sticking.
-
Clog-Free & Monitored Operation: The horizontal duct dumps along with the box to prevent clogs, and an integrated sight window allows operators to easily monitor load levels.
Heavy-Duty Pick-up & Suction System
-
Wide Cleaning Path: Features an 84-inch pick-up width using 4 rows of brushes or rubber fingers, supported by an infinitely adjustable 4-wheel height system.
-
Hydraulic Lift & Drive: Hydraulic drive system with quick couplers and double-action hydraulic cylinders to safely raise and lower the unit during transport.
-
Dedicated Suction Hose: Includes a 12'6" x 8" hose with double grip handles that receives full power for maximum suction force (isolated from the pick-up unit), and stores directly on the vac when not in use.
Heavy-Duty Impeller & Housing
-
High-Durability Impeller: Equipped with a 35" diameter, 8-blade curved steel impeller (PTO driven at 540 RPM) reinforced with robust gussets for high efficiency and wear resistance.
-
Stainless Steel Lined Housing: The housing features a stainless steel lining that drastically increases Rockwell hardness from 18 to 84 for superior long-term resistance.
-
Easy Maintenance: Includes removable access panels on the pick-up unit, top-access panels on the impeller housing, an oversized drain plug, and clearly marked grease points.
Operational Specifications & Support
-
Tractor Compatibility: Requires a minimum of 45 PTO H.P. and 5 GPM double plug-in hydraulics.
-
Convenient Transport Details: Features a variable-height pin hitch and a dedicated remote storage point for the jack stand and PTO.
